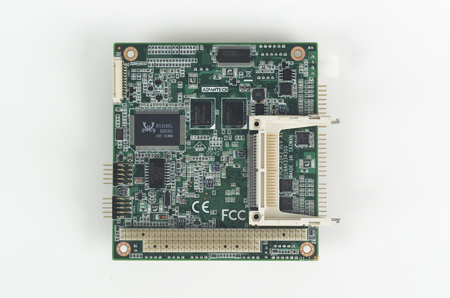

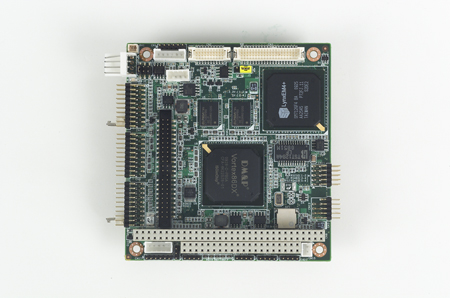

| PCM-3343EF-256A1E |
PCM-3343EL-256A1E |
PCM-3343Z2-256A1E |
PCM-3343Z-256A1E |
| |
|
|
|
|
| Form Factor |
Form Factor |
PC/104 |
PC/104 |
PC/104 |
PC/104 |
| Processor |
CPU |
DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
DM&P Vortex86DX 800 MHz, supports Floating Point Unit (FPU) |
| Frequency |
800MHz |
800MHz |
800MHz |
800MHz |
| L2 Cache |
256KB |
256KB |
256KB |
256KB |
| BIOS |
Award integrated 16 Mbit ROM in SOC |
Award integrated 16 Mbit ROM in SOC |
Award integrated 16 Mbit ROM in SOC |
Award integrated 16 Mbit ROM in SOC |
| Memory |
Technology |
DDR2 333 MHz SDRAM on board |
DDR2 333 MHz SDRAM on board |
DDR2 333 MHz SDRAM on board |
DDR2 333 MHz SDRAM on board |
| Max. Capacity |
512MB |
512MB |
512MB |
512MB |
| Onboard Memory |
Onboard 256 MB (512 MB supported by request) |
Onboard 256 MB (512 MB supported by request) |
Onboard 256 MB (512 MB supported by request) |
Onboard 256 MB (512 MB supported by request) |
| Display |
Graphic Engine |
62.5 MHz single clock/cycle engine (EM+)/- 86 MHz single clock/cycle engine (EM4+) Designed to accelerate DirectDraw |
|
62.5 MHz single clock/cycle engine (EM+) 86 MHz single clock/cycle engine (EM4+) Designed to accelerate DirectDraw |
62.5 MHz single clock/cycle engine (EM+) 86 MHz single clock/cycle engine (EM4+) Designed to accelerate DirectDraw |
| Graphic Memory |
4 MB internal memory/- |
|
4 MB internal memory |
4 MB internal memory |
| VGA |
up to 1024 x 768 at 85 Hz/- |
|
up to 1024 x 768 at 85 Hz |
up to 1024 x 768 at 85 Hz |
| LCD (TTL/LVDS/eDP) |
LVDS:24-bit up to 1024 x 768/- TTL: single channel 24 bits up to 1024 x 768 |
|
LVDS:24-bit up to 1024 x 768 TTL: single channel 24 bits up to 1024 x 768 |
LVDS:24-bit up to 1024 x 768 TTL: single channel 24 bits up to 1024 x 768 |
| Multiple Display |
Dual/- |
|
Dual |
Dual |
| Expansion |
I2C Bus |
1 |
1 |
1 |
1 |
| PC/104 |
1 |
1 |
1 |
1 |
| Ethernet |
Controller |
GbE1: Vortex86DX SOC integrated GbE2: Realtek RTL8100C-LF |
GbE1: Vortex86DX SOC integrated GbE2: Realtek RTL8100C-LF |
GbE1: Vortex86DX SOC integrated GbE2: Realtek RTL8100C-LF |
GbE1: Vortex86DX SOC integrated GbE2: Realtek RTL8100C-LF |
| Speed |
10/100 Mbps |
10/100 Mbps |
10/100 Mbps |
10/100 Mbps |
| Connector |
Pin Header |
Pin Header |
Pin Header |
Pin Header |
| Watchdog Timer |
WatchDog Timer |
Yes |
Yes |
Yes |
Yes |
| Storage |
IDE |
1 |
1 |
1 |
1 |
| CompactFlash |
1 |
1 |
1 |
1 |
| I/O |
USB2.0 |
4,2 |
4,2 |
4 |
4 |
| SPI Bus |
Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS) |
Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS) |
Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS) |
Optional onboard 4 MB SPI Flash Disk (Supported by request for boot device or storage on DOS OS) |
| GPIO |
1 |
1 |
1 |
1 |
| COM Port |
4 (3 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485) |
4 (3 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485)/2 (1 x RS232, 1 x RS232/ 422/ 485) |
4 (3 x RS232, 1 x RS232/ 422/ 485) |
4 (3 x RS232, 1 x RS232/ 422/ 485) |
| Keypad |
1 |
1 |
1 |
1 |
| Power |
Power Type |
AT |
AT |
AT |
AT |
| Power Supply Voltage |
5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card) |
5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card) |
5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card) |
5V ± 5% only to boot up (12 V is optional for LCD inverter and add-on card) |
| Power Consumption (Idle) |
0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
0.74 @ +5 V, 3.7 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
| Power Consumption (Full Load) |
0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
0.85 A @ +5 V, 4.25 Watt (Vortex86DX 1 GHz, DDR2 256 MB) |
| Battery |
3 V/210 mAH |
3 V/210 mAH |
3 V/210 mAH |
3 V/210 mAH |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing) |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 85% RH non-condensing) |
-40° C ~ 85° C |
-20° C ~ 80° C |
| Non-Operational Temperature |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
| Physical |
Dimension (mm) |
96 x 90 mm (3.8" x 3.5") |
96 x 90 mm (3.8" x 3.5") |
96 x 90 mm (3.8" x 3.5") |
96 x 90 mm (3.8" x 3.5") |
| Weight |
0.508 kg (1.12 lb) |
0.508 kg (1.12 lb) |
0.508 kg (1.12 lb) |
0.508 kg (1.12 lb) |
| Operating System |
Microsoft Windows |
Yes |
Yes |
Yes |
Yes |
| Linux |
Yes |
Yes |
Yes |
Yes |
| Certification |
EMC |
CE, FCC |
CE, FCC |
CE, FCC |
CE, FCC |
