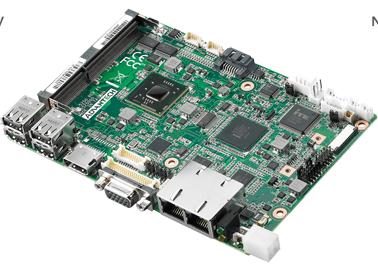

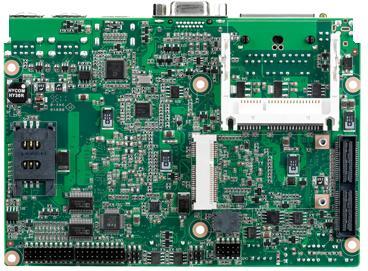

| Form Factor |
Form Factor |
MIO-Compact |
MIO-Compact |
| Processor |
CPU |
Intel Atom D2550 |
Intel Atom N2600 |
| CPU TDP |
10W |
3.5W |
| Frequency |
1.86 GHz |
1.6 GHz |
| Core Number |
2 |
2 |
| L2 Cache |
1MB |
1MB |
| BIOS |
AMI EFI 16Mbit |
AMI EFI 16Mbit |
| Chipset |
Intel NM10 |
Intel NM10 |
| Memory |
Technology |
DDR3 1066MHz |
DDR3 800MHz |
| Max. Capacity |
4 GB |
4 GB |
| Socket |
1 x 204-pin SODIMM |
1 x 204-pin SODIMM |
| Display |
Controller |
Intel Atom D2550 |
Intel Atom N2600 |
| Graphic Engine |
DirectX 9 and OpenGL3.0 support H/W Decode/Acceleration: H.264/AVC/VC-1/MPEG2/WMV |
DirectX 9 and OpenGL3.0 support H/W Decode/Acceleration: H.264/AVC/VC-1/MPEG2/WMV |
| Graphic Memory |
Share with system memory up to 256MB |
Share with system memory up to 256MB |
| VGA |
Up to 1920 x 1200 at 60 Hz |
Up to 1920 x 1200 at 60 Hz |
| LCD (TTL/LVDS/eDP) |
LVDS 48-bit, up to 1920 x 1200 at 60 Hz |
LVDS 18/24-bit, up to 1366 x 768 at 60 Hz |
| DDI (HDMI/DVI/DisplayPort) |
HDMI: 1.3a, 1920 x 1600 at 60Hz |
HDMI: 1.3a, 1920 x 1600 at 60Hz |
| Multiple Display |
VGA+LVDS, VGA+HDMI, HDMI+LVDS |
VGA+LVDS, VGA+HDMI, HDMI+LVDS |
| Expansion |
Mini-PCIe |
1 x Full-size |
1 x Full-size |
| SIM Socket |
1 |
1 |
| SMBus |
1 (Shares with I2C pin) |
1 (Shares with I2C pin) |
| I2C Bus |
1 (Shares with SMBus pin) |
1 (Shares with SMBus pin) |
| MIOe |
SMBus, 3 x USB2.0, LPC, 1 x PCIe, line out, Displayport (optional), Reset#, PowerOn, +5Vsb, +12Vsb |
SMBus, 3 x USB2.0, LPC, 1 x PCIe, line out, Displayport (optional), Reset#, PowerOn, +5Vsb, +12Vsb |
| Ethernet |
Controller |
GbE1& GbE2: Intel 82583V |
GbE1& GbE2: Intel 82583V |
| Speed |
10/ 100/ 1000 Mbps |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
RJ45 x 2 |
| Audio |
Audio Interface |
High Definition Audio |
High Definition Audio |
| CODEC |
Realtek ALC892 |
Realtek ALC892 |
| Amplifier |
Optional via MIOe |
Optional via MIOe |
| Connector |
Line-in, Line out, Mic-in |
Line-in, Line out, Mic-in |
| Watchdog Timer |
WatchDog Timer |
255 levels timer interval, programmable by software |
255 levels timer interval, programmable by software |
| Storage |
SATA |
1, up to 3Gb/s (300 MB/s) |
1, up to 3Gb/s (300 MB/s) |
| mSATA |
Supports either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe |
Supports either mSATA or full size miniPCIe, selected by BIOS, default support miniPCIe |
| CFast |
1 |
1 |
| I/O |
USB2.0 |
6 (4 from Rear, 2 from Internal) |
6 (4 from Rear, 2 from Internal) |
| GPIO |
8-bit general purpose input/output |
8-bit general purpose input/output |
| COM Port |
2 RS-232 from COM1/4, 2 RS-232/422/485 support auto low control from COM2/3 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV) |
2 RS-232 from COM1/4, 2 RS-232/422/485 support auto low control from COM2/3 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV) |
| Reset Button |
1 |
1 |
| Power |
Power Type |
Single 12V DC power input |
Single 12V DC power input |
| Power Supply Voltage |
Supports single 12V input, ± 10% |
Supports single 12V input, ± 10% |
| Connector |
ATX 2x2p |
DC Jack |
| Power Consumption (Idle) |
0.829 A @ 12 V (9.95 W) |
0.606 A @ 12 V (7.27 W) |
| Power Consumption (Full Load) |
1.029 A @ 12 V (12.35 W) |
0.729 A @ 12 V (8.75 W) |
| Battery |
Lithium 3 V / 210 mAH |
Lithium 3 V / 210 mAH |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
-40° C ~ 85° C and 60° C @ 95% RH non-condensing |
| Physical |
Dimension (mm) |
146 x 102 mm (5.7" x 4") |
146 x 102 mm (5.7" x 4") |
| Weight |
0.78 kg (1.72 lb), weight of total package |
0.78 kg (1.72 lb), weight of total package |
| Operating System |
Microsoft Windows |
Yes |
Yes |
| Linux |
Yes |
Yes |
| SUSIAccess |
Yes |
Yes |
| iManager |
Yes |
Yes |
| Certification |
EMC |
CE, FCC |
CE, FCC |
