INTRODUCTION
艾訊宏達GT6150工控機
工控機購買電話：13581789724 王海旭 010-82827893/39-8004 詳情請登陸：www.getck.com.cn · 4U上架式智能型工業(yè)機箱
· 3個5.25”和2個3.5” 驅動空間
· 支持13、14槽工業(yè)底板
· ATX 標準2U PS/2電源
· 顯示機箱內部電壓狀態(tài)

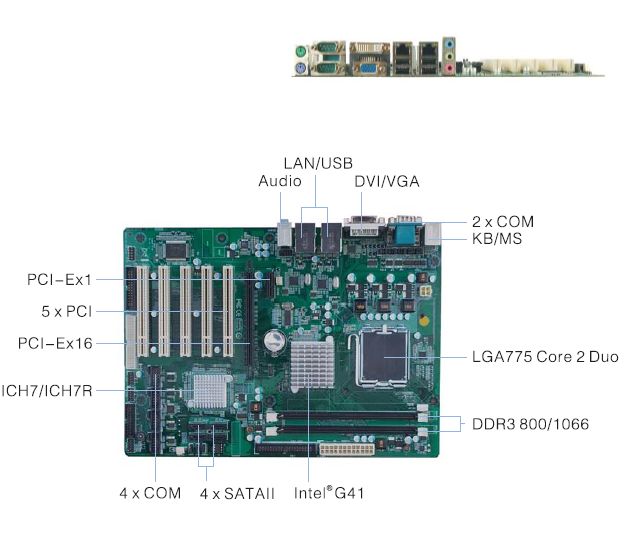

工控機購買電話：13581789724 王海旭 010-82827893/39-8004 詳情請登陸：www.getck.com.cn SYM76941VGGA工業(yè)母板Intel G41 ATX board w/VGA/2*Giga LAN/Audio/6*COM
LGA775 support Intel Core2 Quad/Core 2 Duo/Pentium D/Celeron D
· Intel G41 + ICH7/IC7R, FSB 800/1066/1333MHz
· 2 x 240pin DIMM DDR3 1066/1333 up to 8GB
· 2 x Intel 82574L PCI-E Gigabit LAN
· 6 x COM ports，4 x SATAII，8 x USB2.0
· 1 x PCIe x 16, 1 x PCIe x 1, 5 x PCI slots expansion

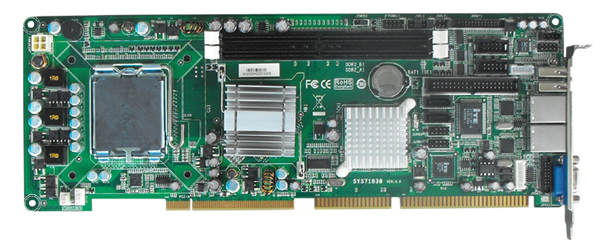

 工控機購買電話：13581789724 王海旭 010-82827893/39-8004 詳情請登陸：www.getck.com.cn SYS71838VGA工控主板Processor LGA775, Core 2 Duo/Pentium Dual-Core/Pentium EE/Pentium D/Pentium 4/ Celeron D
Chipset Intel 945GC + ICH7 + FWH with 667/800/1066MHz DRAM 2 x 240PIN Dual Channel DDRII 667/800 max up to 4GB BIOS 4MB AMI BIOS BUS PICMG 1.0
Power Supply Support ACPI V2.0 specification
Watchdog 1~255 sec Watchdog timer selectable w/Reaset/NMI
Dimension 338mm x 122mm
>>Rear Panel I/O Ports
VGA 1 x DB-15 VGA port
LAN 1 x RJ-45 LAN ports
USB 2 x USB 2.0/1.1 ports
>> I/O Connectors
SATA 2 x SerialII ATA connector
IDE 1 x 40-pin IDE connector
LPT 1 x Parallel connector
USB 2 x connectors for 4 additional external USB 2.0/1.1 ports
Keyboard/Mouse 1 x mini-DIN-6 PS/2 keyboard & Mouse port
COM 2 x COM ports, COM1 for RS232, COM2 for RS232/422/485
Audio 1 x front audio connector for line-out and Mic-in jacks
CD-in 1 x CD-in internal audio connector
Power 1 x 4-pin ATX +12V power connector
Fan 2 x Fan connector
>> Display
Graphics Intel Graphic Media Accelerator 950, Max share 224MB memory
>> Environment
Operation Temperature 0°~60°C
Humidity 10~90% |
||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
 |
|
||
