IPC-940/AIMB-701VG/I3 3320/I5 2400/I7 2600
經典款4U機架式機箱，帶前置風扇
更多圖片
4U機架式機箱，可支持ATX/uATX工業主板
抗震動磁盤架設計，可支持3個5.25寸光驅和1個3.5寸硬盤
獨特的固定壓條設計帶有橡膠墊腳，可以防止卡受到?jīng)_擊或振動造成的損壞
人性化設計的前置過濾裝置，易于維護
可鎖附前門板設計，防止未經授權的操作
規格
Part Number
相關訊息
IPC-940MB-25Z
Disk Drive Bay
3.5" External Bay
5.25 External Bay
1
3
Cooling
Air Filter
Fan
Yes
1 (12 cm / 85 CFM)
Miscellaneous
Rear Panel
LED Indicators
Control
Five 9-pin D-Sub and one 25-pin D-Sub openings
Power, HDD activity
Power switch and system reset button
Environment
Operating-Temperature
Non-Operational Temperature
Operating Humidity
Non-Operating Humidity
Operating Vibration (5 ~ 500 Hz)
Non-Operating Vibration (5 ~ 500 Hz)
Shock
0 ~ 45
-20 ~ 60° C (-4 ~ 140° F)
10 ~ 85% @ 40° C, non-condensing
10 ~ 95% @ 40° C, non-condensing
1 Grms
2 G
10 G (with 11 ms duration, half sine wave)
Physical Characteristics
Weight

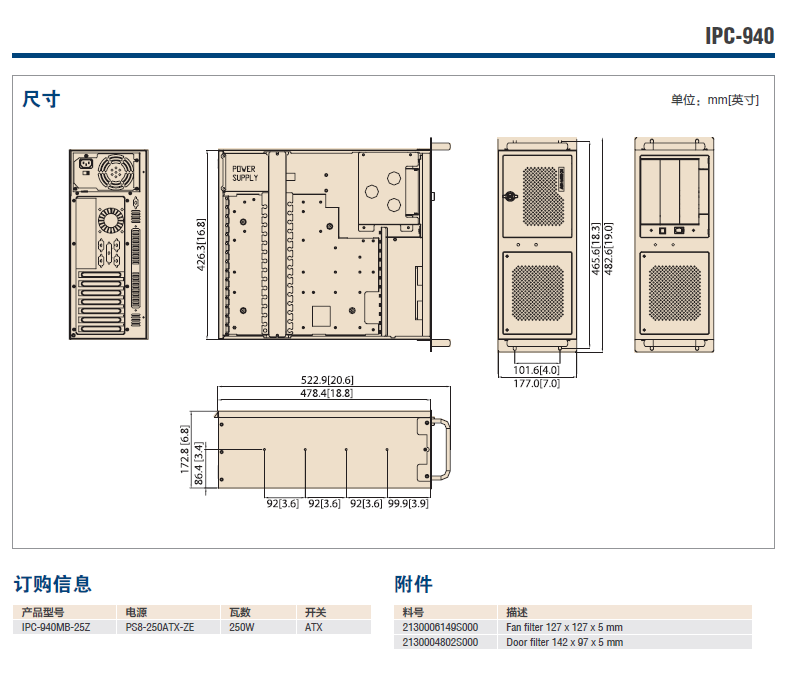

Dimensions (W x H x D)
14.5 kg ( 31.9 lb )
482 x 177 x 479 mm (19'' x 7'' x 18.9'')
